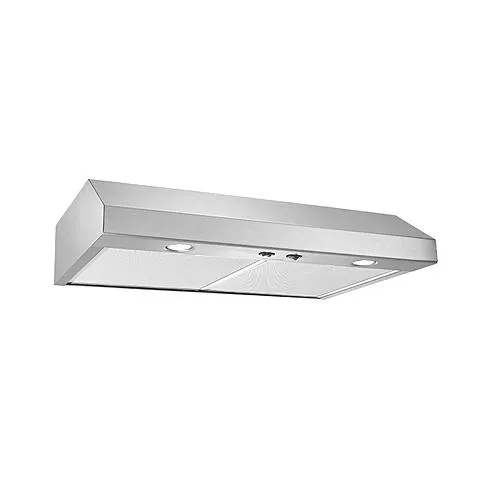

30" Under-Cabinet Range Hood - Stainless Steel
Key Features
- Comes with EZ1 brackets that make it easy for one person to install
- Packed with a powerful two-speed, 250-CFM venting system to pull unwanted smoke, grease and more from the air
- An advanced blower design helps remove smoke and odors fast
- Two dishwasher-safe, open-mesh filters remove grease efficiently
- A smooth-flow blower wheel design and high-flow filters keep the volume at 1.5 sones on normal operation
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (50W bulbs not included)
- Lights tested to ensure long life without dimming
- Hidden on/off rocker switches control blower speeds and light levels
- Hidden louvers on top of the hood exhaust smoke away from the cabinetry
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Non-duct capable with use of charcoal filters, sold separately
Product Overview
Easy Breathing
Get rid of that strong fishy smell from your kitchen with the help of this stainless steel Kenmore 30" under-cabinet range hood. This powerful hood gets rid of smoke and odors from your kitchen, so that food you accidentally scorched on the cooktop won't make the whole house smell. This is the beginning of a beautiful relationship.
- Comes with EZ1 brackets that make it easy for one person to install
- Packed with a powerful two-speed, 250-CFM venting system to pull unwanted smoke, grease and more from the air
- An advanced blower design helps remove smoke and odors fast
- Two dishwasher-safe, open-mesh filters remove grease efficiently
- A smooth-flow blower wheel design and high-flow filters keep the volume at 1.5 sones on normal operation
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (50W bulbs not included)
- Lights tested to ensure long life without dimming
- Hidden on/off rocker switches control blower speeds and light levels
- Hidden louvers on top of the hood exhaust smoke away from the cabinetry
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Non-duct capable with use of charcoal filters, sold separately
Specifications
|
Dimensions:
|
|
|
Overall Width
|
29-7/8 in. |
|
Max. Height Above Cooktop
|
24 |
|
Min. Height Above Cooktop
|
18 in. |
|
Duct Size
|
7 in. round / 10 in. rectangular |
|
Cutout Dimensions
|
Refer to diagrams featured on Standard Installation section of Installation Manual |
|
Appliance Features:
|
|
|
Number of Air Movers
|
1 internal |
|
Air Mover(s) Speed
|
2 speed |
|
Air Mover Type(s)
|
Fan(s) |
|
Positioning
|
Stationary |
|
Cleanability
|
Dishwasher-safe removable grease filters |
|
Clearance, above Cooktop
|
18 in. to 24 in. |
|
Product Overview:
|
|
|
Exhaust Method
|
Ducted & Ductless |
|
Color:
|
|
|
Color Family
|
Stainless steel |
|
Materials & Finishes:
|
|
|
Hood
|
Stainless steel |
|
Grease Filter Material
|
Aluminum metal mesh |
|
Overall Material
|
Stainless steel |
|
Flow Rate:
|
|
|
Cubic Feet per Minute (CFM)
|
250 CFM |
|
Noise Level:
|
|
|
Sones (Noise Level) Rating
|
1 |
|
Controls:
|
|
|
Control(s) Location
|
Bottom |
|
Control Type(s)
|
Rocker switches |
|
Styling:
|
|
|
Visibility
|
Modern |
|
Venting:
|
|
|
Installation
|
Under cabinet |
|
Venting
|
Updraft |
|
Ductwork Flexibility
|
2-way |
|
Ductwork Type
|
Vertical or horizontal |
|
Pollutant Removal Type
|
Convertible (either ventless or vented) |
|
Filtration:
|
|
|
Filter Cleaning
|
Dishwasher-Safe |
|
Grease Filter Style
|
Removable metal mesh |
|
Lighting:
|
|
|
Cleanability Lights
|
Open fixture |
|
Number of Lights
|
2 |
|
Settings
|
Low and high |
|
Light Type
|
Halogen |
|
Installation:
|
|
|
Required Parts, Not Included
|
Halogen light bulbs |
|
Recommendations
|
Use metal ductwork (rigid or flexible) |
|
Product Includes:
|
|
|
Power Cord Included
|
No |
|
Assembly:
|
|
|
Setup Requirements
|
Installation required |
