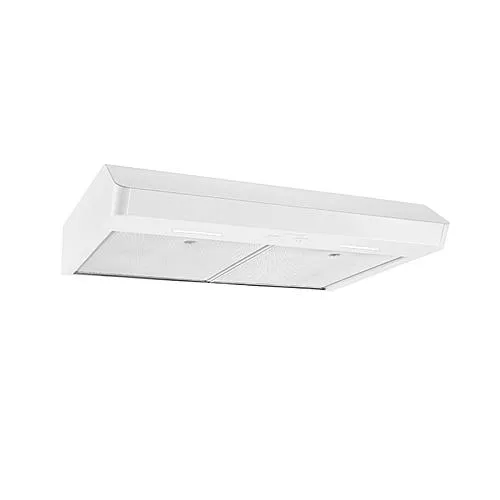

30" Under Cabinet Range Hood - White
Key Features
- Comes with EZ1 brackets that make it easy for one person to install
- Packed with a powerful two-speed, 300-CFM venting system to pull unwanted smoke, grease and more from the air
- An advanced blower design helps remove smoke and odors fast
- Two dishwasher-safe, micro-mesh filters remove grease efficiently
- A smooth-flow blower wheel design and high-flow filters keep the volume at 1.2 sones on normal operation
- Bright, single-intensity LED lighting give your cooktop even illumination
- Lights tested to ensure long life without dimming
- Hidden on/off rocker switches control blower speeds and light levels
- Hidden louvers on top of the hood exhaust smoke away from the cabinetry
- Save money on energy bills with ENERGY STAR® certification
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Non-duct capable with use of charcoal filters, sold separately
Product Overview
Freshen Up Your Kitchen
Breathe easier after cooking fish or anything with the white Kenmore Elite 30" under-cabinet range hood. This powerful hood gets rid of smoke and odors from your kitchen, so that bacon you accidentally burnt on the stove won't make the whole house smell. This is the beginning of a beautiful relationship.
- Comes with EZ1 brackets that make it easy for one person to install
- Packed with a powerful two-speed, 300-CFM venting system to pull unwanted smoke, grease and more from the air
- An advanced blower design helps remove smoke and odors fast
- Two dishwasher-safe, micro-mesh filters remove grease efficiently
- A smooth-flow blower wheel design and high-flow filters keep the volume at 1.2 sones on normal operation
- Bright, single-intensity LED lighting give your cooktop even illumination
- Lights tested to ensure long life without dimming
- Hidden on/off rocker switches control blower speeds and light levels
- Hidden louvers on top of the hood exhaust smoke away from the cabinetry
- Save money on energy bills with ENERGY STAR® certification
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Non-duct capable with use of charcoal filters, sold separately
Specifications
|
Dimensions:
|
|
|
Overall Width
|
29-7/8 in. |
|
Max. Height Above Cooktop
|
24 |
|
Min. Height Above Cooktop
|
18 in. |
|
Duct Size
|
7 in. round / 10 in. rectangular |
|
Cutout Dimensions
|
Refer to diagrams featured on Standard Installation section of Installation Manual |
|
Appliance Features:
|
|
|
Number of Air Movers
|
1 internal |
|
Air Mover(s) Speed
|
2 speed |
|
Air Mover Type(s)
|
Fan(s) |
|
Positioning
|
Stationary |
|
Cleanability
|
Dishwasher-safe removable grease filters |
|
Clearance, above Cooktop
|
18 in. to 24 in. |
|
Product Overview:
|
|
|
Exhaust Method
|
Ducted & Ductless |
|
Color:
|
|
|
Color Family
|
White |
|
Materials & Finishes:
|
|
|
Hood
|
Painted steel |
|
Grease Filter Material
|
Aluminum metal mesh |
|
Overall Material
|
Painted steel |
|
Flow Rate:
|
|
|
Cubic Feet per Minute (CFM)
|
300 CFM |
|
Noise Level:
|
|
|
Sones (Noise Level) Rating
|
1 |
|
Controls:
|
|
|
Control(s) Location
|
Bottom |
|
Control Type(s)
|
Rocker switches |
|
Styling:
|
|
|
Visibility
|
Low profile |
|
Venting:
|
|
|
Installation
|
Under cabinet |
|
Venting
|
Updraft |
|
Ductwork Flexibility
|
2-way |
|
Ductwork Type
|
Vertical or horizontal |
|
Pollutant Removal Type
|
Convertible (either ventless or vented) |
|
Filtration:
|
|
|
Filter Cleaning
|
Dishwasher-Safe |
|
Grease Filter Style
|
Removable metal mesh |
|
Lighting:
|
|
|
Cleanability Lights
|
Fully enclosed |
|
Number of Lights
|
2 |
|
Settings
|
Cooking light |
|
Light Type
|
LED |
|
Installation:
|
|
|
Recommendations
|
Use metal ductwork (rigid or flexible) |
|
Product Includes:
|
|
|
Power Cord Included
|
No |
|
Assembly:
|
|
|
Setup Requirements
|
Installation required |
