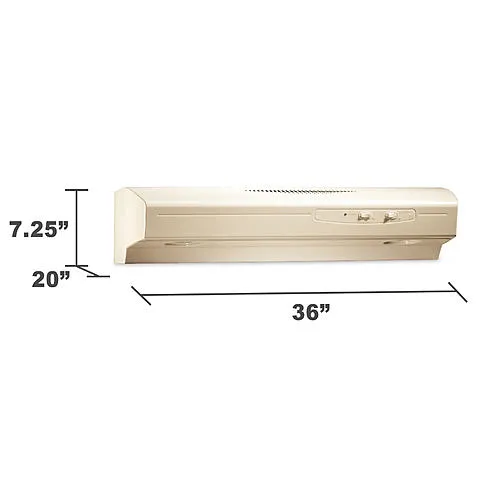

36" Updraft Range Hood - Bisque
Key Features
- Fully enclosed design for easy cleaning
- Dual halogen lamp design with two-level light setting (bulbs sold separately)
- Includes 3-1/4 x 10 in. duct connector with built-in damper and 7 in. duct connector
Product Overview
Kenmore — trusted in the homes of more than 100 million Americans.
Contemporary-style range hood with sleek rocker controls for a clean appearance. Features a fully enclosed design and large, dishwasher-safe filters for easy cleaning. Dual halogen lights (sold separately) provide focused lighting as well as a soft, night-time level.
- Fully enclosed design for easy cleaning
- Dual halogen lamp design with two-level light setting (bulbs sold separately)
- Includes 3-1/4 x 10 in. duct connector with built-in damper and 7 in. duct connector
Specifications
|
Dimensions:
|
|
|
Overall Width
|
36 in. |
|
Depth, Chimney
|
20 |
|
Max. Height Above Cooktop
|
24 |
|
Min. Height Above Cooktop
|
18 in. |
|
Duct Size
|
Standard 3-1/4 x 10 in. |
|
Filter Size
|
470 sq. in. |
|
Depth (In.)
|
20 |
|
Weight, Shipping (Approx.)
|
23 |
|
Maximum Width (In.)
|
36 |
|
Cutout Dimensions
|
See Installation Guide below product description |
|
Product Overview:
|
|
|
Exhaust Method
|
Ducted |
|
Materials & Finishes:
|
|
|
Grease Filter Material
|
Aluminum |
|
Overall Material
|
Painted steel |
|
Controls:
|
|
|
Control(s) Location
|
Front |
|
Control Type(s)
|
Mechanical (dials/pushbuttons) |
|
Power Source:
|
|
|
Ratings
|
120 V, 60 HZ |
|
Styling:
|
|
|
Visibility
|
Hidden when not in use |
|
Cutouts:
|
|
|
Width, Opening
|
36 in. |
|
Venting:
|
|
|
Ductwork Flexibility
|
4-way |
|
Installation
|
Under cabinet |
|
Venting
|
Updraft |
|
Appliance Features:
|
|
|
Number of Air Movers
|
1 internal |
|
Air Mover(s) Speed
|
2 speed |
|
Air Mover Type(s)
|
Internal centrifugal blower(s) |
|
Cleanability
|
Seamless design with minimal edges and parts |
|
Clearance, above Cooktop
|
Dash for Compares & Unknowns |
|
Flow Rate:
|
|
|
Cubic Feet per Minute (CFM)
|
230 CFM |
|
Noise Level:
|
|
|
Sones (Noise Level) Rating
|
5.0 |
|
Filtration:
|
|
|
Filter Cleaning
|
Dishwasher-Safe |
|
Grease Filter Style
|
Removable metal mesh |
|
Lighting:
|
|
|
Settings
|
Cooking light |
|
Light Type
|
Halogen |
|
Light Visibility
|
Recessed, visible only under hood |
|
Installation:
|
|
|
Required Parts, Not Included
|
Halogen light bulbs |
|
Product Includes:
|
|
|
Power Cord Included
|
No |
|
Color:
|
|
|
Color Family
|
Beige & Bisque |
